    PVC Dimensional Tarpaulin Covers

    • Material: Polyester / PVC
    • Weight: 500 gr /m² / 900 gr/m²
    • Dimension: Suitable for Project Based Dimensioning

    Datasheet
    Category: Tags: ,

    About Product

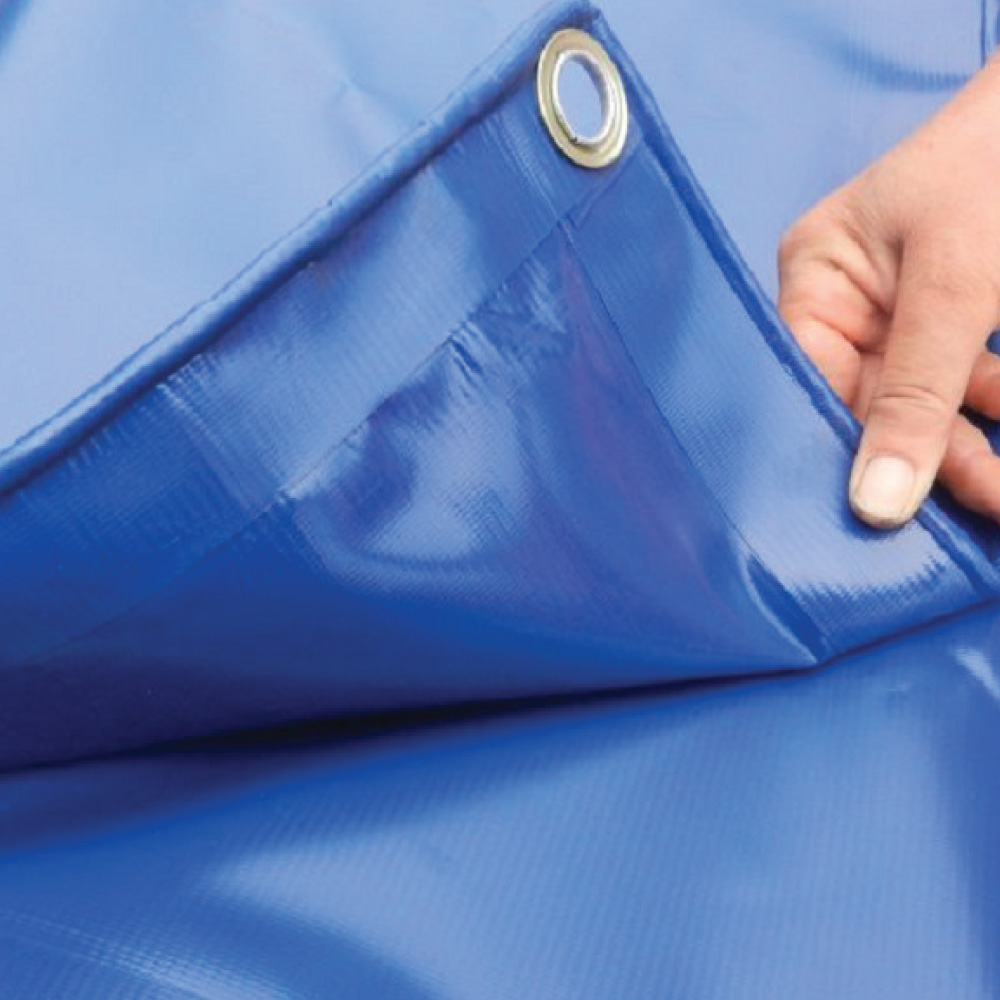

    PVC Tarpaulin is combined by polyester fabric and PVC paste. The weight starts 300gr/sqm to 1400/sqm. Any dimension with reinforced edges and eyelets can be done according to our customers’ demands. The most common sizes are as below;

    • 4*6mt
    • 6*8mt
    • 8*10mt
    • 10*10mt
    • 12*15mt

    NOTE: ANY DIMENSION AS PER CUSTOMERS’ REQUEST CAN BE PRODUCED.

    Documents

    PVC Tarpaulin Technical Information DOWNLOAD

    Technical Data

    Product Description 620-630 Truck Tarpaulin
    Technicial Specifications Standards Unit Value
    Base Fabric DIN 60001 – 100% PES
    Yarn Type DIN EN ISO 2060 Polyester 1100 DTX
    Weaving Construction – – 8×8 (20×20)
    Weight TS 1534 EN ISO 2286-2 gr/m² 630±5
    Width – cm 150-250-300-320
    Roll Lenght – m 20-250
    Surface Treatment – – Parlak – Mat – Desenli
    Temprature Resistant DIN EN 1876-1 °C -30
    Temprature Resistant IVK/Pkt.5 °C +70
    Tensile Strength TS 2008 EN ISO 1421 N/5cm 2100/2000
    Tear Strength TS EN ISO 4674-1 N 200/190
    Adhesion TS EN ISO 2411 N/5cm 40
    Colour Fastness BS EN ISO 105-BO2 – 6
    Extra Treatment ACRYLIC, SILVER, PVDF LAC – (If Demanded)
    Flammability DIN 4102-1B2/NF P 92-507 – B2/M2/B1
